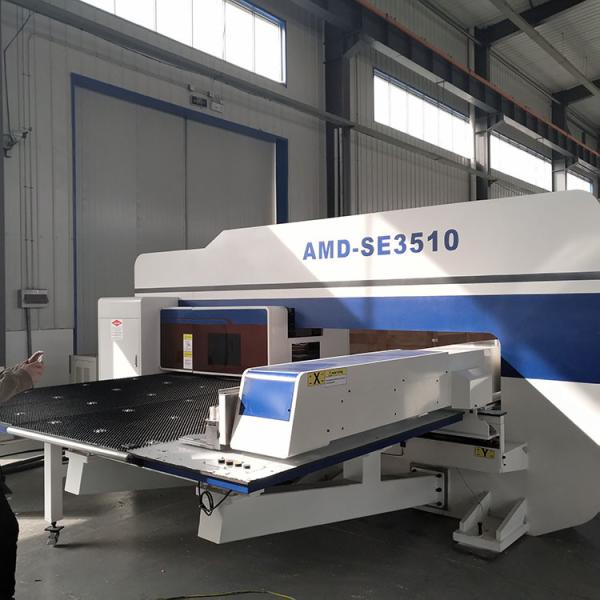

High Quality CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency
Product Description
·Equipped Fanuc 5 axis CNC system, Fanuc CNC punch servo module, can realize 5 axis control at the same time. ·Equipped with USB, R232 communication interface which can realize the front desk, backstage programming. ·Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation. · Equipped high strength nodular cast iron to cast into integral thick turret mold plate, thickness is 80mm, through heat treatment to get rid of internal stress, rigid good, precision stability, impact resistant ability good; greatly improving mold service life. · Equipped with high precision servo initiative transmission system, speed is faster and stroke is adjustable. · With the second positioning function, can achieve processing without dead zone. · The transmission system use original Taiwan brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance. ·Main pneumatic components, electric components, hydraulic components and transmission components adopt international well-known brand product, which makes the punch work perfectly. ·Equipped with concentrated lubricating device, reduce friction and improve service life. ·Equipped with 2 sets of
auto-index station, can easily punch holes with different degrees.
Product Paramenters
| Specification | Unit | Specification model |
| Punch Force | KN | 200 | 300 |
| | | 1250*1250 | 1250*1250 |
| 1250*2500 | 1250*2500 |
| 1250*5000 | 1250*5000 |
| Max.Sheet Thickness | mm | 4 | 6 |
| Punching Frequency | hpm | 1600 | 1600 |
| Max.Sheet Traversing Speed | m/min | 80 | 80 |
| Turret Speed | rpm | 40 | 40 |
| Hole Accuracy | mm | ±0.1 | ±0.1 |
| Max Punch Diameter | mm | φ88.9 | φ88.9 |
| Number of stations in turret | No. | 24/32 | 24/32 |
| Air Pressure | mpa | 0.8 | 0.8 |
| Controlled Axis | No. | 4(X,Y,C,A) | 4(X,Y,C,A) |
| Prower Rating | KW | 30 | 35 |
| Outline Dimension | mm | 4490*53300*2110 | 4490*5300*2110 |
| Machine Weight | T | 13 | 14 |
Workshop situation:
