Brand Name : Puhua
Model Number : Q38
Certification : ISO CE
Place of Origin : China
MOQ : 1 set
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 20 sets per month
Delivery Time : 30 days
Packaging Details : Stretch film
Machine : Overhead chain shot blasting machine
Warranty : One Year
Hook amount : Customized
Wear parts material : Cr20S high chrome, ZGMn13, etc
Condition : New
Machine Type : Abrator
Cleaning Type : auto

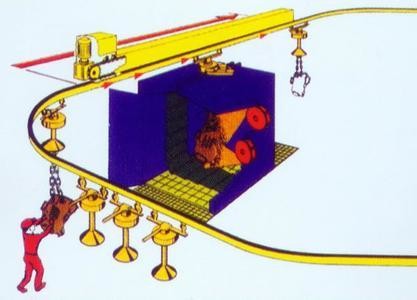

Q38 High Efficiency Overhead Chain Continuous Shot Blasting Machine
Pass Through Chain Shot Blasting Machine/Shot Blast Cleaning Machine are recommended for the treatment of sensitive parts which cannot be tumbled in bulk loads, and for particularly complex, heavy, or large parts. Besides the monorail system there are also batch and continuous system other options
Specification:
| Model | Hanger capacity(kg) | Workpiece size to be cleaned(mm) | Productivity(hooks/h) | Work stype |
| Q382 | 200 | Φ500*1200 | 30~60 | Continuous |
| Q383C | 250 | Φ700*1200 | 30~60 | Continuous |
| Q384C | 400 | Φ700*1500 | 40~70 | Continuous |
| Q483 | 300 | Φ1060*1200 | 10~25 | Step-by-step |
| Q485 | 500 | Φ1200*1500 | 10~25 | Step-by-step |
| Q488 | 800 | Φ1400*1800 | 10~25 | step-by-step |
| Q583 | 300 | Φ1000*1500 | 30~60 | Accumulation conveyors |
| Q585 | 500 | Φ1200*1500 | 30~60 | Accumulation converyors |
| Q588 | 800 | Φ1500*1500 | 30~60 | Accumulation converyor |
|
|
Heavy Duty Automatic Shot Blasting Machine , Shot Blast Cleaning Equipment For Forging Parts Images |
